Ningbo Unique Seal Technology Co.,Ltd
Hit：9047
2019-12-23
Page URL：http://umseal.com/en/products/70.html

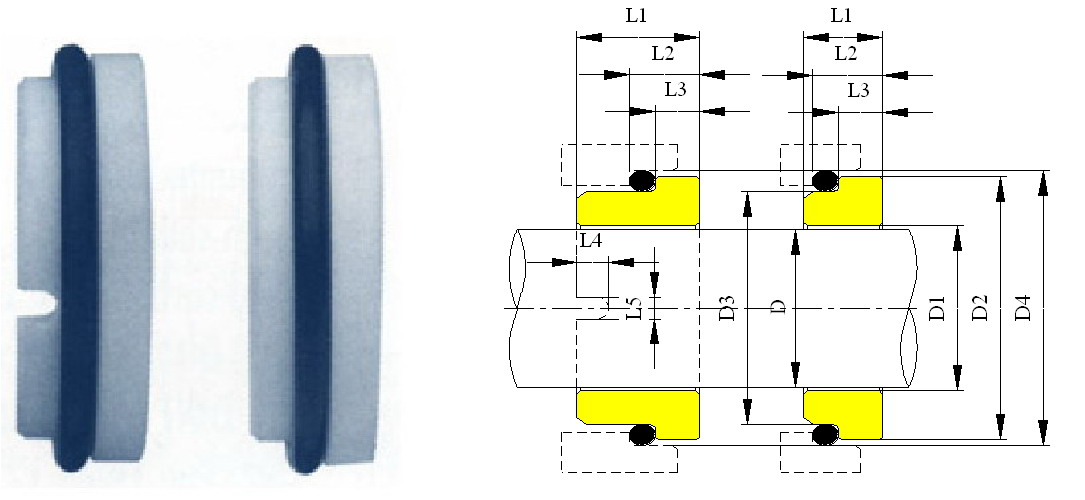

Metric Shaft Size D | Size Code | D1 | D2 | D3 | D4 | L2 | L3 | T 24DINL | T 24DINS | |||
L4 | L5 | L1 | D1 | L1 | ||||||||
10 | 0100 | 11.2 | 20.6 | 16.4 | 21.0 | 8.6 | 6.0 | 5.0 | 4.0 | 15.0 | 11.0 | 10.0 |
12 | 0120 | 13.2 | 22.6 | 18.4 | 23.0 | 8.6 | 6.0 | 5.0 | 4.0 | 15.0 | 13.0 | 10.0 |
14 | 0140 | 15.2 | 24.6 | 20.4 | 25.0 | 8.6 | 6.0 | 5.0 | 4.0 | 15.0 | 15.0 | 10.0 |
16 | 0160 | 17.2 | 26.6 | 22.4 | 27.0 | 8.6 | 6.0 | 5.0 | 4.0 | 15.0 | 17.0 | 10.0 |
18 | 0180 | 19.2 | 32.6 | 26.6 | 33.0 | 10.0 | 6.5 | 5.5 | 5.0 | 17.0 | 19.0 | 11.5 |
20 | 0200 | 21.2 | 34.6 | 28.6 | 35.0 | 10.0 | 6.5 | 5.5 | 5.0 | 17.0 | 21.0 | 11.5 |
22 | 0220 | 23.2 | 36.6 | 30.6 | 37.0 | 10.0 | 6.5 | 5.5 | 5.0 | 17.0 | 23.0 | 11.5 |
24 | 0240 | 25.2 | 38.6 | 32.6 | 39.0 | 10.0 | 6.5 | 5.5 | 5.0 | 17.0 | 25.0 | 11.5 |
25 | 0250 | 26.2 | 39.6 | 33.6 | 40.0 | 10.0 | 6.5 | 5.5 | 5.0 | 17.0 | 26.0 | 11.5 |
28 | 0280 | 29.2 | 42.6 | 36.6 | 43.0 | 10.0 | 6.5 | 5.5 | 5.0 | 17.0 | 29.0 | 11.5 |
30 | 0300 | 31.2 | 44.6 | 38.6 | 45.0 | 10.0 | 6.5 | 5.5 | 5.0 | 17.0 | 31.0 | 11.5 |
32 | 0320 | 33.2 | 47.6 | 41.6 | 48.0 | 10.0 | 6.5 | 5.5 | 5.0 | 17.0 | 33.0 | 11.5 |
33 | 0330 | 34.2 | 47.6 | 41.6 | 48.0 | 10.0 | 6.5 | 5.5 | 5.0 | 17.0 | 34.0 | 11.5 |
35 | 0350 | 36.2 | 49.6 | 43.8 | 50.0 | 10.0 | 6.5 | 5.5 | 5.0 | 17.0 | 36.0 | 11.5 |
38 | 0380 | 39.2 | 55.6 | 48.8 | 56.0 | 11.0 | 7.0 | 5.5 | 5.0 | 18.0 | 39.0 | 12.5 |
40 | 0400 | 41.2 | 57.6 | 50.8 | 58.0 | 11.0 | 7.0 | 5.5 | 5.0 | 18.0 | 41.0 | 12.5 |
43 | 0430 | 44.2 | 60.6 | 53.8 | 61.0 | 11.0 | 7.0 | 5.5 | 5.0 | 18.0 | 44.0 | 12.5 |
45 | 0450 | 46.2 | 62.6 | 55.8 | 63.0 | 11.0 | 7.0 | 5.5 | 5.0 | 18.0 | 46.0 | 12.5 |
48 | 0480 | 49.2 | 65.6 | 58.8 | 66.0 | 11.0 | 7.0 | 5.5 | 5.0 | 18.0 | 49.0 | 12.5 |
50 | 0500 | 51.2 | 69.6 | 61.3 | 70.0 | 13.0 | 8.5 | 5.5 | 5.0 | 20.0 | 51.0 | 14.5 |
53 | 0530 | 54.2 | 72.6 | 64.3 | 73.0 | 13.0 | 8.5 | 5.5 | 5.0 | 20.0 | 54.0 | 14.5 |
55 | 0550 | 56.3 | 74.6 | 66.3 | 75.0 | 13.0 | 8.5 | 5.5 | 5.0 | 20.0 | 56.0 | 14.5 |
58 | 0580 | 59.2 | 77.5 | 69.3 | 78.0 | 13.0 | 8.5 | 5.5 | 5.0 | 20.0 | 59.0 | 14.5 |
60 | 0600 | 61.2 | 79.5 | 71.3 | 80.0 | 13.0 | 8.5 | 5.5 | 5.0 | 20.0 | 61.0 | 14.5 |
63 | 0630 | 64.2 | 82.5 | 74.3 | 83.0 | 13.0 | 8.5 | 5.5 | 5.0 | 20.0 | 64.0 | 14.5 |
65 | 0650 | 66.2, | 84.5 | 76.3 | 85.0 | 13.0 | 8.5 | 5.5 | 5.0 | 20.0 | 66.0 | 14.5 |
68 | 0680 | 69.2 | 89.5 | 80.5 | 90.0 | 15.3 | 10.0 | 5.5 | 5.0 | 22.0 | 69.0 | 16.5 |
70 | 0700 | 71.2 | 91.4 | 82.6 | 92.0 | 15.3 | 10.0 | 5.5 | 5.0 | 22.0 | 71.2 | 16.5 |
75 | 0750 | 76.2 | 96.4 | 87.6 | 97.0 | 15.3 | 10.0 | 5.5 | 5.0 | 22.0 | 76.2 | 16.5 |
80 | 0800 | 81.2 | 104.2 | 94.7 | 105.0 | 15.7 | 10.0 | 5.5 | 5.0 | 23.0 | 81.2 | 17.5 |
85 | 0850 | 86.2 | 109.2 | 99.7 | 110.0 | 15.7 | 10.0 | 5.5 | 5.0 | 23.0 | 86.2 | 17.5 |
90 | 0900 | 91.2 | 114.2 | 104.7 | 115.0 | 15.7 | 10.0 | 5.5 | 5.0 | 23.0 | 91.2 | 17.5 |
95 | 0950 | 96.2 | 119.2 | 109.7 | 120.0 | 15.7 | 10.0 | 5.5 | 5.0 | 23.0 | 96.2 | 17.5 |
100 | 1000 | 101.2 | 124..2 | 114.7 | 125.0 | 15.7 | 10.0 | 5.5 | 5.0 | 23.0 | 101.2 | 17.5 |
