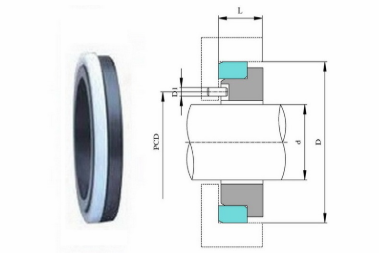

UMS STANDARD SIZES | ||||||||||
Shaft Size d | D | PCD | D1 | L | Shaft Size d | D | PCD | D1 | L | |
0.500" | 25.40 | 17.46 | 2 | 7.95 | 3.125" | 101.60 | 85.75 | 3 | 19.8 | |
0.625" | 31.75 | 20.64 | 2 | 10.3 | 3.250" | 104.78 | 88.90 | 3 | 19.8 | |
0.750" | 34.93 | 23.81 | 2 | 10.3 | 3.375" | 107.95 | 92.05 | 3 | 19.8 | |
0.875" | 38.10 | 26.99 | 2 | 10.3 | 3.500" | 111.13 | 95.25 | 3 | 19.8 | |
1.000" | 41.28 | 30.15 | 2 | 11.1 | 3.625" | 114.30 | 98.40 | 3 | 19.8 | |
1.125" | 44.45 | 33.35 | 2 | 11.1 | 3.750", | 117.48 | 101.60 | 3 | 19.8 | |
1.250" | 47.63 | 36.50 | 2 | 11.1 | 3.875" | 120.65 | 104.80 | 3 | 19.8 | |
1.375" | 50.80 | 39.70 | 2 | 11.1 | 4.000" | 123.83 | 107.95 | 3 | 19.8 | |
1.500" | 53.98 | 42.85 | 2 | 11.1 | 4.125" | 130.18 | 112.70 | 3 | 19.8 | |
1.625" | 60.33 | 47.65 | 3 | 12.7 | 4.250" | 133.35 | 115.90 | 3 | 19.8 | |
1.750" | 63.50 | 50.80 | 3 | 12.7 | 4.375" | 136.53 | 119.05 | 3 | 19.8 | |
1.875" | 66.68 | 54.00 | 3 | 12.7 | 4.500" | 139.70 | 122.25 | 3 | 19.8 | |
2.000" | 69.85 | 57.15 | 3 | 12.7 | 4.625" | 142.88 | 125.40 | 3 | 19.8 | |
2.125" | 76.20 | 60.30 | 3 | 14.3 | 4.750" | 146.05 | 128.60 | 3 | 19.8 | |
2.250" | 79.38 | 63.50 | 3 | 14.3 | 4.875" | 149.23 | 131.75 | 3 | 19.8 | |
2.375" | 82.55 | 66.70 | 3 | 14.3 | 5.000" | 152.40 | 134.95 | 3 | 19.8 | |
2.500" | 85.73 | 69.85 | 3 | 14.3 | 5.125" | 155.58 | 138.10 | 3 | 19.8 | |
2.625" | 85.73 | 73.00 | 3 | 15.9 | 5.250" | 158.75 | 141.30 | 3 | 19.8 | |
2.750" | 88.90 | 76.20 | 3 | 15.9 | 5.375" | 161.93 | 144.45 | 3 | 19.8 | |
2.875" | 95.25 | 79.35 | 3 | 15.9 | 5.500" | 165.10 | 147.65 | 3 | 19.8 | |
3.000" | 98.43 | 82.55 | 3 | 15.9 | ||||||
