T21 and T31

2019-12-23

Page URL：http://umseal.com/en/products/65.html

Detail

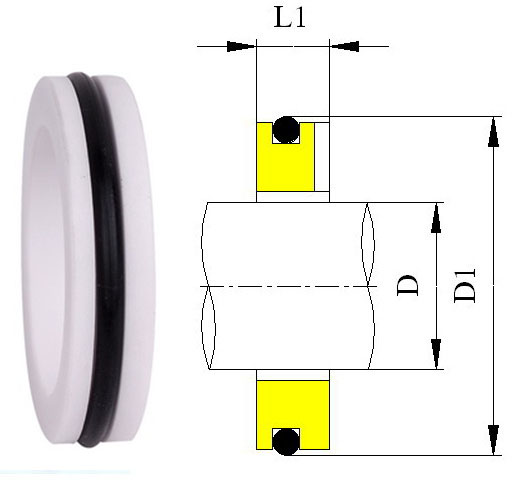

Inch Shaft Size D	Size Code	Metric Shaft Size D	Size Code	T21		T31
Inch Shaft Size D	Size Code	Metric Shaft Size D	Size Code	D1	L1	D1	L1
0.375'	0095			24.60	8.70	22.22	7.95
		10	0100	24.60	8.70	22.22	7.95
		12	0120	27.79	8.70	25.40	7.95
0.500'	0127			27.79	8.70	25.40	7.95
		13	0130	27.79	8.70	25.40	7.95
		14	0140	30.95	10.30	31.75	10.30
		15	0150	30.95	10.30	31.75	10.30
0.625'	0158			30.95	10.30	31.75	10.30
		16	0160	, 30.95	10.30	31.75	10.30
		18	0180	34.15	10.30	34.93	10.30
0.750'	0191			34.15	10.30	34.93	10.30
		20	0200	35.70	10.30	38.10	10.30
		22	0220	37.30	10.30	38.10	10.30
0.875'	0222			37.30	10.30	38.10	10.30
		24	0240	40.50	10.30	41.28	11.10
		25	0250	40.50	10.30	41.28	11.10
1.000'	0254			40.50	10.30	41.28	11.10
		28	0280	47.63	11.90	44.44	11.10
1.125'	0286			47.63	11.90	44.44	11.10
		30	0300	50.80	11.90	47.63	11.10
1.250'	0286			50.80	11.90	47.63	11.10
		30	0300	50.80	11.90	47.63	11.10
		33	0330	53.98	11.90	50.80	11.10
1.375'	0349			53.98	11.90	50.80	11.10
		35	0350	53.98	11.90	50.80	11.10
		38	0380	57.15	11.90	53.98	11.10
1.500'	0381			57.15	11.90	53.98	11.10
		40	0400	60.35	11.90	60.35	12.70
1.625'	0412			60.35	11.90	60.33	12.70
		42	0420	63.50	11.90	63.50	12.70
		43	0430	63.50	11.90	63.50	12.70
50'	0444			63.50	11.90	63.50	12.70
		45	0450	63.50	11.90	66.68	12.70
1.875‘	0476			66.70	11.90	66.68	12.70
		48	0480	66.70	11.90	69.85	12.70
		50	0500	69.85	13.50	69.85	12.70
2.000'	0508			69.85	13.50	69.85	12.70
		53	0530	73.05	13.50	76.20	14.30
2.125'	0539			73.05	13.50	76.20	14.30
		55	0550	76.20	13.50	79.38	14.30
2.250'	0571			76.20	13.50	79.30	14.30
		58	0580	79.40	13.50	82.55	14.30
		60	0600	79.40	13.50	82.55	14.30
2.375'	0603			79.40	13.50	82.55	14.30
		63	0630	82.55	13.50	85.73	14.30
2.500'	0635			82.55	13.50	85.73	14.30
		65	0650	92.10	15.90	85.73	15.90
2.625'	0666			92.10	15.90	85.73	15.90
2.750'	0698			95.25	15.90	88.90	15.90
		70	0700	95.25	15.90	88.90	15.90
2.875'	0730			98.45	15.90	92.25	15.90
		75	0750	101.65	15.90	98.43	15.90
3.000'	0762			101.65	15.90	98.43	15.90
		80	0800	111.15	19.90	101.60	19.88
		90	0900	120.65	19.90	111.13	19.88
		100	1000	133.35	19.90	123.83	19.88
