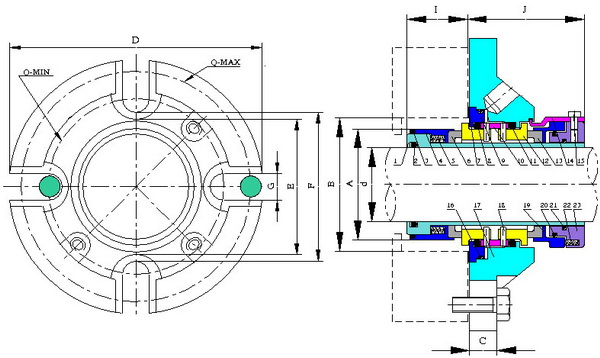

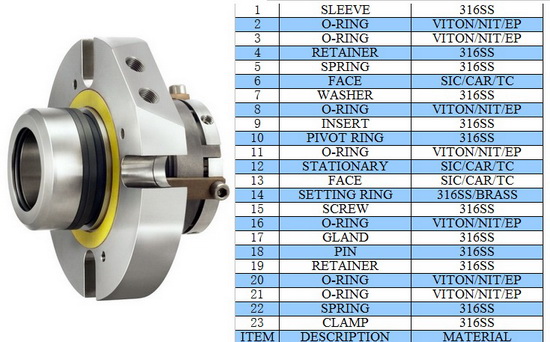

JCD-Metric Dimensional Information(mm) | |||||||||||
d | C | D | E | F | Bmin | Bmam | Qmin | Qmax | Gmax | I | J |
24 | 13.2 | 104.8 | 49.2 | 54.0 | 40.0 | 46.0 | 67.0 | 90.5 | 12 | 32.5 | 52.4 |
25 | 13.2 | 104.8 | 49.2 | 54.0 | 41.0 | 49.0 | 67.0 | 90.5 | 12 | 32.5 | 52.4 |
28 | 13.2 | 108.0 | 52.4 | 57.2 | 44.0 | 52.3 | 70.3 | 93.6 | 12 | 32.5 | 52.4 |
30 | 13.2 | 111.0 | 55.6 | 60.4 | 46.0 | 55.5 | 73.5 | 96.8 | 12 | 32.5 | 52.4 |
32 | 13.2 | 111.0 | 55.6 | 60.4 | 48.0 | 55.5 | 73.5 | 96.8 | 12 | 32.5 | 52.4 |
33 | 13.2 | 111.0 | 55.6 | 60.4 | 49.0 | 55.5 | 73.5 | 96.8 | 12 | 32.5 | 52.4 |
35 | 13.2 | 111.0 | 58.8 | 63.5 | 51.0 | 57.5 | 76.6 | 96.8 | 12 | 32.5 | 52.4 |
38 | 16.4 | 127.0 | 65.0 | 71.5 | 57.2 | 60.3 | 85.7 | 114.3 | 12 | 33.3 | 54.0 |
40 | 16.4 | 127.0 | 65.0 | 71.5 | 58.0 | 60.4 | 85.7 | 114.3 | 12 | 33.3 | 54.0 |
43 | 16.4 | 127.0 | 65.0 | 71.5 | 61.0 | 63.5 | 85.7 | 114.3 | 12 | 33.3 | 54.0 |
45 | 16.4 | 139.7 | 71.4 | 81.0 | 63.5 | 69.9 | 95.3 | 127.0 | 12 | 33.3 | 54.0 |
48 | 16.4 | 139.7 | 71.4 | 81.0 | 66.7 | 73.0 | 95.3 | 127.0 | 12 | 33.3 | 54.0 |
50 | 16.4 | 139.7 | 71.4 | 81.0 | 68.0 | 73.0 | 95.3 | 127.0 | 12 | 33.3 | 54.0 |
53 | 16.4 | 152.4 | 77.8 | 90.5 | 71.0 | 76.2 | 104.8 | 139.7 | 12 | 35.0 | 54.0 |
55 | 16.4 | 152.4 | 77.8 | 90.5 | 74.0 | 79.4 | 104.8 | 139.7 | 12 | 35.0 | 54.0 |
58 | 16.4 | 165.1 | 84.1 | 96.8 | 76.2 | 82.5 | 114.3 | 149.2 | 16.0 | 35.0 | 54.0 |
60 | 16.4 | 165.1 | 84.1 | 96.8 | 79.4 | 85.7 | 114.3 | 149.2 | 16.0 | 35.0 | 54.0 |
63 | 19.6 | 177.8 | 96.8 | 109.5 | 85.8 | 92.1 | 127.0 | 160.3 | 16.0 | 38.1 | 60.3 |
65 | 19.6 | 177.8 | 96.8 | 109.5 | 88.9 | 95.3 | 127.0 | 160.3 | 16.0 | 38.1 | 60.3 |
68 | 19.6 | 177.8 | 96.8 | 109.5 | 92.1 | 98.4 | 127.0 | 160.3 | 16.0 | 38.1 | 60.3 |
70 | 19.6 | 177.8 | 96.8 | 109.5 | 92.1 | 98.4 | 127.0 | 160.3 | 16.0 | 38.1 | 60.3 |
75 | 19.6 | 190.5 | 108.0 | 125.4 | 98.5 | 108.0 | 142.9 | 173.0 | 16.0 | 38.1 | 60.3 |
80 | 19.6 | 190.5 | 108.0 | 125.4 | 101.6 | 111.1 | 142.9 | 173.0 | 16.0 | 38.1 | 60.3 |
85 | 19.6 | 203.2 | 117.5 | 135.0 | 108.0 | 117.5 | 155.6 | 182.5 | 20.0 | 38.1 | 60.3 |
90 | 19.6 | 215.9 | 127.0 | 150.8 | 114.3 | 127.0 | 171.5 | 195.2 | 20.0 | 38.1 | 60.3 |
95 | 19.6 | 215.9 | 127.0 | 150.8 | 117.5 | 130.2 | 171.5 | 195.2 | 20.0 | 38.1 | 60.3 |
100 | 19.6 | 228.6 | 136.5 | 168.3 | 123.9 | 139.7 | 189.0 | 208.0 | 20.0 | 38.1 | 60.3 |
105 | 19.6 | 228.6 | 136.5 | 168.3 | 130.1 | 149.2 | 189.0 | 208.0 | 20.0 | 38.1 | 60.3 |
110 | 19.6 | 241.3 | 146.2 | 177.8 | 136.5 | 158.8 | 198.4 | 220.6 | 20.0 | 38.1 | 60.3 |
115 | 19.6 | 254.0 | 155.8 | 186.6 | 142.9 | 168.3 | 211.1 | 230.2 | 22.0 | 38.1 | 60.3 |
120 | 19.6 | 254.0 | 155.8 | 186.6 | 142.9 | 168.3 | 211.1 | 230.2 | 22.0 | 38.1 | 60.3 |
125 | 19.6 | 254.0 | 155.8 | 186.6 | 149.2 | 168.3 | 211.1 | 230.2 | 22.0 | 38.1 | 60.3 |
JCD-Imperial Dimensional Information(inchs) | |||||||||||
d | C | D | E | F | Bmin | Bmax | Qmin | Qmax | Gmax | I | J |
1.000 | 0.519 | 4.125 | 1.937 | 2.125 | 1.625 | 1.937 | 2.687 | 3.562 | 1/2 | 1.281 | 2.062 |
1.125 | 0.519 | 4.250 | 2.063 | 2.250 | 1.750 | 2.062 | 2.812 | 3.617 | 1/2 | 1.281 | 2.062 |
1.250 | 0.519 | 4.375 | 2.187 | 2.375 | 1.875 | 2.187 | 2.937 | 3.812 | 1/2 | 1.281 | 2.062 |
1.375 | 0.519 | 4.375 | 2.312 | 2.500 | 2.000 | 2.250 | 3.062 | 3.812 | 1/2 | 1.281 | 2.062 |
1.500 | 0.644 | 5.000 | 2.562 | 2.812 | 2.250 | 2.375 | 3.375 | 4.437 | 1/2 | 1.312 | 2.125 |
1.625 | 0.644 | 5.000 | 2.562 | 2.812 | 2.375 | 2.500 | 3.375 | 4.437 | 1/2 | 1.312 | 2.125 |
1.750 | 0.644 | 5.500 | 2.812 | 3.187 | 2.500 | 2.750 | 3.750 | 4.937 | 1/2 | 1.312 | 2.125 |
1.875 | 0.644 | 5.500 | 2.812 | 3.187 | 2.625 | 2.875 | 3.750 | 4.937 | 1/2 | 1.312 | 2.125 |
2.000 | 0.644 | 6.000 | 3.063 | 3.562 | 2.750 | 3.000 | 4.125 | 5.437 | 1/2 | 1.380 | 2.125 |
2.125 | 0.644 | 6.000 | 3.063 | 3.562 | 2.875 | 3.125 | 4.125 | 5.437 | 1/2 | 1.380 | 2.125 |
2.250 | 0.644 | 6.500 | 3.312 | 3.812 | 3.000 | 3.250 | 4.500 | 5.812 | 5/8 | 1.380 | 2.125 |
2.375 | 0.644 | 6.500 | 3.312 | 3.812 | 3.125 | 3.375 | 4.500 | 5.812 | 5/8 | 1.380 | 2.125 |
2.500 | 0.769 | 7.000 | 3.812 | 4.312 | 3.250 | 3.625 | 5.000 | 6.312 | 5/8 | 1.500 | 2.375 |
2.625 | 0.769 | 7.000 | 3.812 | 4.321 | 3.375 | 3.750 | 5.000 | 6.312 | 5/8 | 1.500 | 2.375 |
2.750 | 0.769 | 7.000 | 3.812 | 4.321 | 3.625 | 3.875 | 5.000 | 6.312 | 5/8 | 1.500 | 2.375 |
2.875 | 0.769 | 7.500 | 4.250 | 4.937 | 3.750 | 4.125 | 5.625 | 6.812 | 5/8 | 1.500 | 2.375 |
3.000 | 0.769 | 7.500 | 4.250 | 4.937 | 3.875 | 4.250 | 5.625 | 6.812 | 5/8 | 1.500 | 2.375 |
3.125 | 0.769 | 7.500 | 4.250 | 4.937 | 4.000 | 4.375 | 5.625 | 6.812 | 5/8 | 1.500 | 2.375 |
3.250 | 0.769 | 8.000 | 4.625 | 5.312 | 4.125 | 4.500 | 6.125 | 7.187 | 3/4 | 1.500 | 2.375 |
3.375 | 0.769 | 8.000 | 4.625 | 5.312 | 4.250 | 4.625 | 6.125 | 7.187 | 3/4 | 1.500 | 2.375 |
3.500 | 0.769 | 8.000 | 4.625 | 5.312 | 4.375 | 4.750 | 6.125 | 7.187 | 3/4 | 1.500 | 2.375 |
3.625 | 0.769 | 8.500 | 5.000 | 5.937 | 4.500 | 5.000 | 6.750 | 7.687 | 3/4 | 1.500 | 2.375 |
3.750 | 0.769 | 8.500 | 5.000 | 5.937 | 4.625 | 5.125 | 6.750 | 7.687 | 3/4 | 1.500 | 2.375 |
3.875 | 0.769 | 8.500 | 5.000 | 5.937 | 4.750 | 5.250 | 6.750 | 7.687 | 3/4 | 1.500 | 2.375 |
4.000 | 0.769 | 9.000 | 5.375 | 6.625 | 4.875 | 5.500 | 7.437 | 8.187 | 3/4 | 1.500 | 2.375 |
4.125 | 0.769 | 9.000 | 5.375 | 6.625 | 5.125 | 5.875 | 7.437 | 8.187 | 3/4 | 1.500 | 2.375 |
4.250 | 0.769 | 9.000 | 5.375 | 6.625 | 5.125 | 5.875 | 7.437 | 8.187 | 3/4 | 1.500 | 2.375 |
4.375 | 0.769 | 9.500 | 5.750 | 7.000 | 5.375 | 6.250 | 7.812 | 8.687 | 3/4 | 1.500 | 2.375 |
4.500 | 0.769 | 9.500 | 5.750 | 7.000 | 5.375 | 6.250 | 7.812 | 8.687 | 3/4 | 1.500 | 2.375 |
4.625 | 0.769 | 10.000 | 6.125 | 7.345 | 5.625 | 6.625 | 8.312 | 9.062 | 7/8 | 1.500 | 2.375 |
4.750 | 0.769 | 10.000 | 6.125 | 7.345 | 5.625 | 6.625 | 8.312 | 9.062 | 7/8 | 1.500 | 2.375 |
4.875 | 0.769 | 10.000 | 6.125 | 7.345 | 5.875 | 6.625 | 8.312 | 9.062 | 7/8 | 1.500 | 2.375 |
5.000 | 0.769 | 10.000 | 6.125 | 7.345 | 5.875 | 6.625 | 8.312 | 9.062 | 7/8 | 1.500 | 2.375 |
