Equivalent to Roten 51/Sterling S211/S511 or Sealol 43CE LONG

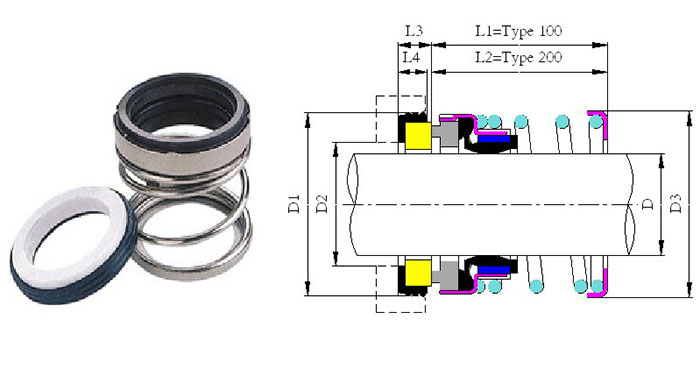

UMS STANDARD SIZES | ||||||||
Metric Shaft Size D | Size Code | D1 | D2 | D3 | L1 | L2 | L3 | L4 |
10 | 0100 | 24.60 | 16.00 | 22.95 | 43.65 | 25.40 | 8.74 | 7.47 |
12 | 0120 | 27.79 | 19.05 | 23.90 | 43.65 | 25.40 | 8.74 | 7.47 |
13 | 0130 | 27.79 | 19.05 | 23.90 | 43.65 | 25.40 | 8.74 | 7.47 |
14 | 0140 | 30.95 | 22.23 | 26.70 | 43.65 | 25.40 | 10.32 | 8.97 |
15 | 0150 | 30.95 | 22.23 | 26.70 | 43.65 | 25.40 | 10.32 | 8.97 |
16 | 0160 | 30.95 | 22.23 | 26.70 | 43.65 | 25.40 | 10.32 | 8.97 |
18 | 0180 | 34.15 | 25.40 | 31.10 | 43.65 | 25.40 | 10.32 | 8.97 |
19 | 0190 | 34.15 | 25.40 | 31.10 | 43.65 | 25.40 | 10.32 | 8.97 |
20 | 0200 | 35.70 | 26.99 | 33.40 | 43.65 | 25.40 | 10.32 | 8.97 |
22 | 0220 | 37.30 | 28.58 | 33.40 | 43.65 | 25.40 | 10.32 | 8.97 |
24 | 0240 | 40.50 | 31.75 | 39.20 | 43.65 | 25.40 | 10.32 | 8.97 |
25 | 0250 | 40.50 | 31.75 | 39.20 | 43.65 | 25.40 | 10.32 | 8.97 |
28 | 0280 | 47.63 | 35.72 | 46.30 | 60.33 | 33.34 | 11.99 | 10.46 |
30 | 0300 | 50.80 | 38.89 | 49.40 | 60.33 | 33.34 | 11.99 | 10.46 |
32 | 0320 | 50.80 | 38.89 | 49.40 | 60.33 | 33.34 | 11.99 | 10.46 |
33 | 0330 | 53.98 | 42.07 | 52.60 | 60.33 | 33.34 | 11.99 | 10.46 |
34 | 0340 | 53.98 | 42.07 | 52.60 | 60.33 | 33.34 | 11.99 | 10.46 |
35 | 0350 | 53.98 | 42.07 | 52.60 | 60.33 | 33.34 | 11.99 | 10.46 |
38 | 0381 | 57.15 | 45.24 | 55.80 | 60.33 | 33.34 | 11.99 | 10.46 |
40 | 0400 | 60.35 | 48.82 | 62.20 | 60.33 | 33.34 | 11.99 | 10.46 |
42 | 0420 | 63.50 | 51.59 | 66.00 | 70.64 | 40.48 | 11.99 | 10.46 |
43 | 0430 | 63.50 | 51.59 | 66.00 | 70.64 | 40.48 | 11.99 | 10.46 |
44 | 0440 | 63.50 | 51.59 | 66.00 | 70.64 | 40.48 | 11.99 | 10.46 |
45 | 0450 | 63.50 | 51.59 | 66.00 | 70.64 | 40.48 | 11.99 | 10.46 |
48 | 0480 | 66.70 | 54.75 | 66.60 | 70.64 | 40.48 | 11.99 | 10.46 |
50 | 0500 | 69.85 | 58.00 | 71.65 | 70.64 | 40.48 | 11.99 | 10.46 |
53 | 0530 | 73.05 | 62.00 | 73.30 | 71.00 | 41.00 | 13.50 | 11.96 |
55 | 0550 | 76.20 | 65.00 | 78.40 | 71.00 | 41.00 | 13.50 | 11.96 |
58 | 0580 | 79.40 | 68.00 | 82.00 | 71.00 | 41.00 | 13.50 | 11.96 |
60 | 0600 | 79.40 | 68.00 | 82.00 | 71.00 | 41.00 | 13.50 | 11.96 |
63 | 0630 | 82.55 | 71.20 | 84.90 | 71.00 | 41.00 | 13.50 | 11.96 |
65 | 0650 | 92.10 | 78.35 | 88.40 | 70.00 | 49.00 | 15.90 | 14.50 |
70 | 0700 | 95.25 | 81.10 | 92.60 | 70.00 | 49.00 | 15.90 | 14.50 |
73 | 0730 | 98.45 | 84.50 | 94.85 | 73.00 | 49.00 | 15.90 | 14.50 |
75 | 0750 | 101.65 | 88.10 | 101.90 | 73.00 | 49.00 | 15.90 | 14.50 |
80 | 0800 | 114.30 | 97.00 | 104.00 | 79.00 | 56.00 | 20.00 | 18.50 |
85 | 0850 | 117.50 | 100.00 | 108.00 | 79.00 | 56.00 | 20.00 | 18.50 |
90 | 0900 | 123.85 | 107.00 | 112.00 | 83.00 | 59.00 | 20.00 | 18.50 |
95 | 0950 | 127.00 | 110.00 | 119.00 | 83.00 | 59.00 | 20.00 | 18.50 |
100 | 1000 | 133.35 | 116.00 | 124.00 | 86.00 | 62.00 | 20.00 | 18.50 |
Maximum Operating Limits | Resilent, single spring, rubber diaphragm seal with rubber | |||||||
PRESSURE 200 psi | SPEED 15 m/s | cup mounted seat as standard. A widely specified | ||||||
TEMPERATURE -40 + 200°C | and utilised seal type, capable of long service life | |||||||
